Magnets for high energy physics

DAΦNE

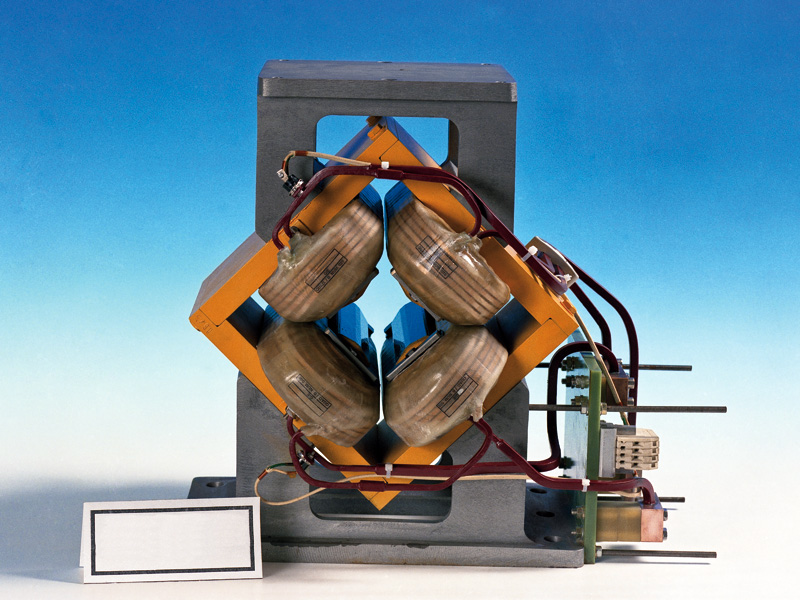

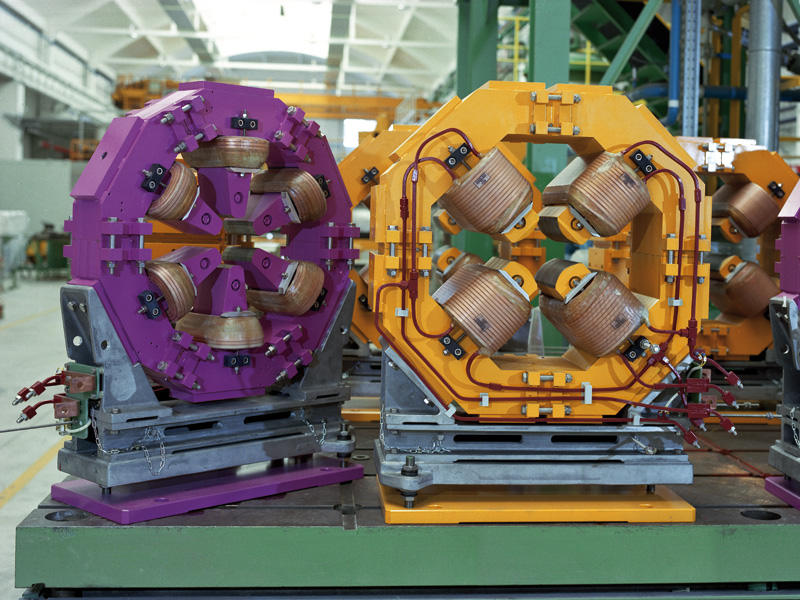

DAΦNE dipoles, quadrupoles and sextupoles

Frascati (Italy), 1993

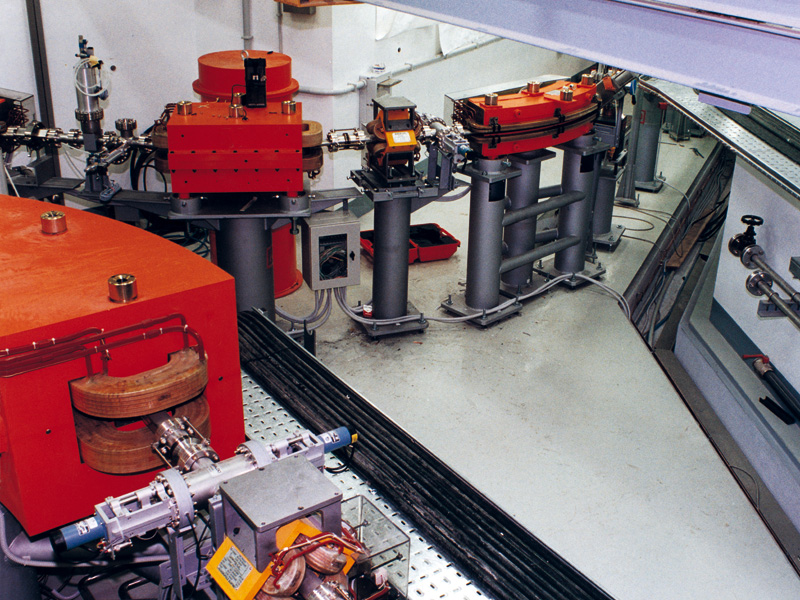

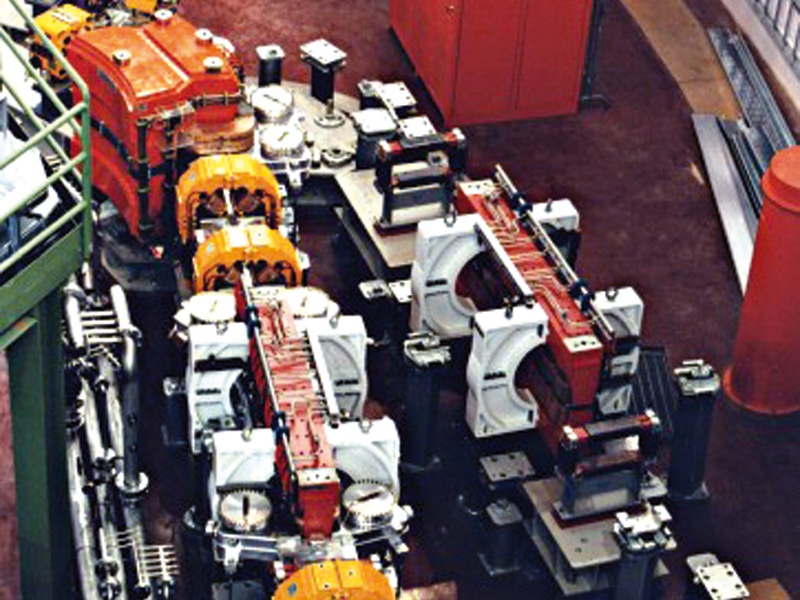

In 1993 the Company was awarded by INFN-LNF a contract for the turn-key construction of the Transfer Lines for the e+e- φ factory DAΦNE in Frascati - Rome. The contract included resistive dipoles, quadrupoles and correctors of 14 different types, more than two hundred vacuum chambers and diagnostics, the whole support system, installation and preliminary alignment of the lines for a total length of about 155 m. Besides the Company drew up a supply contract for about 16 dipoles, 28 large quadrupoles and 18 large sextupoles for the Storage Ring of the same project. Conceptual and detailed design have been developed on LNF baseline design.
